Description
The Triplett Model MM300 is a manual ranging 3-1/2 digit (2000 count) True RMS compact digital multimeter. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. Read More >
DESCRIPTION

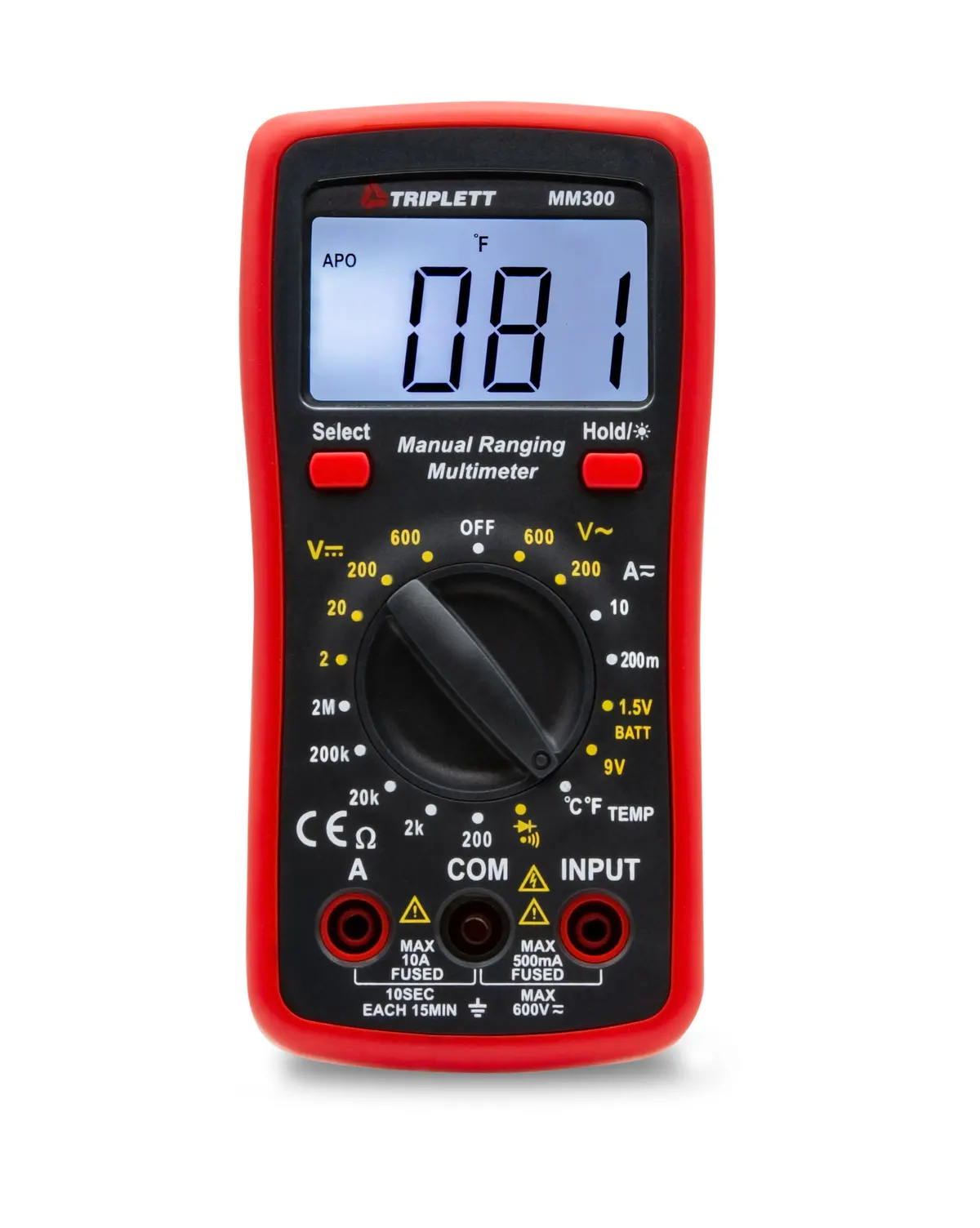

The Triplett Model MM300 is a manual ranging 3-1/2 digit (2000 count) True RMS compact digital multimeter. True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms. It measures AC/DC Voltage, AC/DC Current, Resistance, Temperature, Battery Test (1.5V & 9V), Continuity and Diode Test. It features Data Hold, Auto power off, and a low battery indicator. With a CAT III 600V safety rating, the MM300 is well suited for a variety of commercial and residential applications such as security, home theater, electrical, HVAC installations and more. Includes test leads and (3) AAA batteries. 1-year warranty.

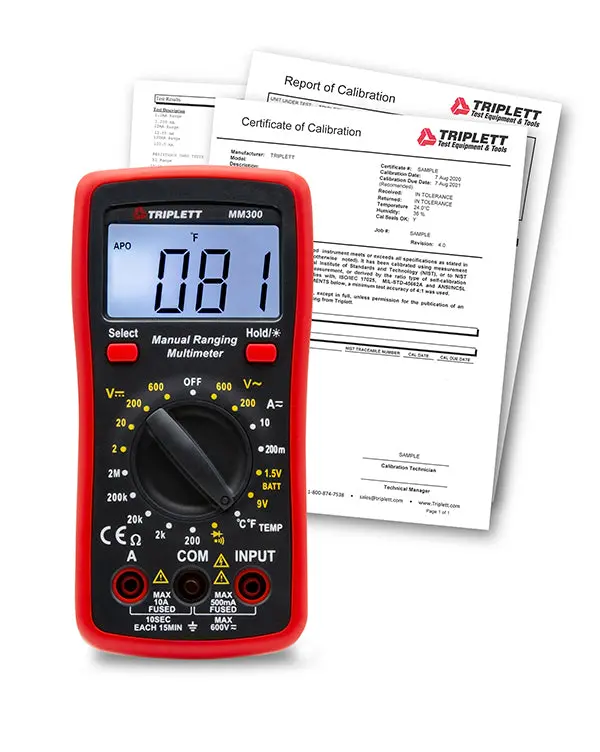

MM300-NIST Comes with Certificate of traceability to NIST standards
Please add 11 business days lead-time for the NIST calibration process
CATEGORY: DIGITAL MULTIMETER
Features
- True RMS provides better accuracy when measuring non-sinusoidal or noisy waveforms
- Measures AC/DC Voltage and Current, Resistance, Temperature, Diode, Continuity, and 1.5V/9V Battery Test
- Data Hold
- Auto power off
- Low battery indicator
- CAT III 600V safety category
- Includes test leads and (3) AAA batteries
- 1-year warranty
Specifications
| MM300 | |
| Display counts | 2000 count |
| Basic Accuracy | ±0.8% |
| AC/DC Voltage | 600V |
| AC/DC Current | 10A |
| Resistance | 2MΩ |
| Temperature | -40 to 2000°F (-40 to 1370°C) |
| Continuity | <30Ω |
| Battery Test | 1.5V, 9V |
| Power | (3) AAA batteries |
| Safety Category | CAT III-600V |
| Dimensions | 5.7 x 2.8 x 1.4″ (145 x 70 x 35mm) |
| Weight | 5.5oz. (157g) |
Downloads
Datasheet
User Manual
