Description

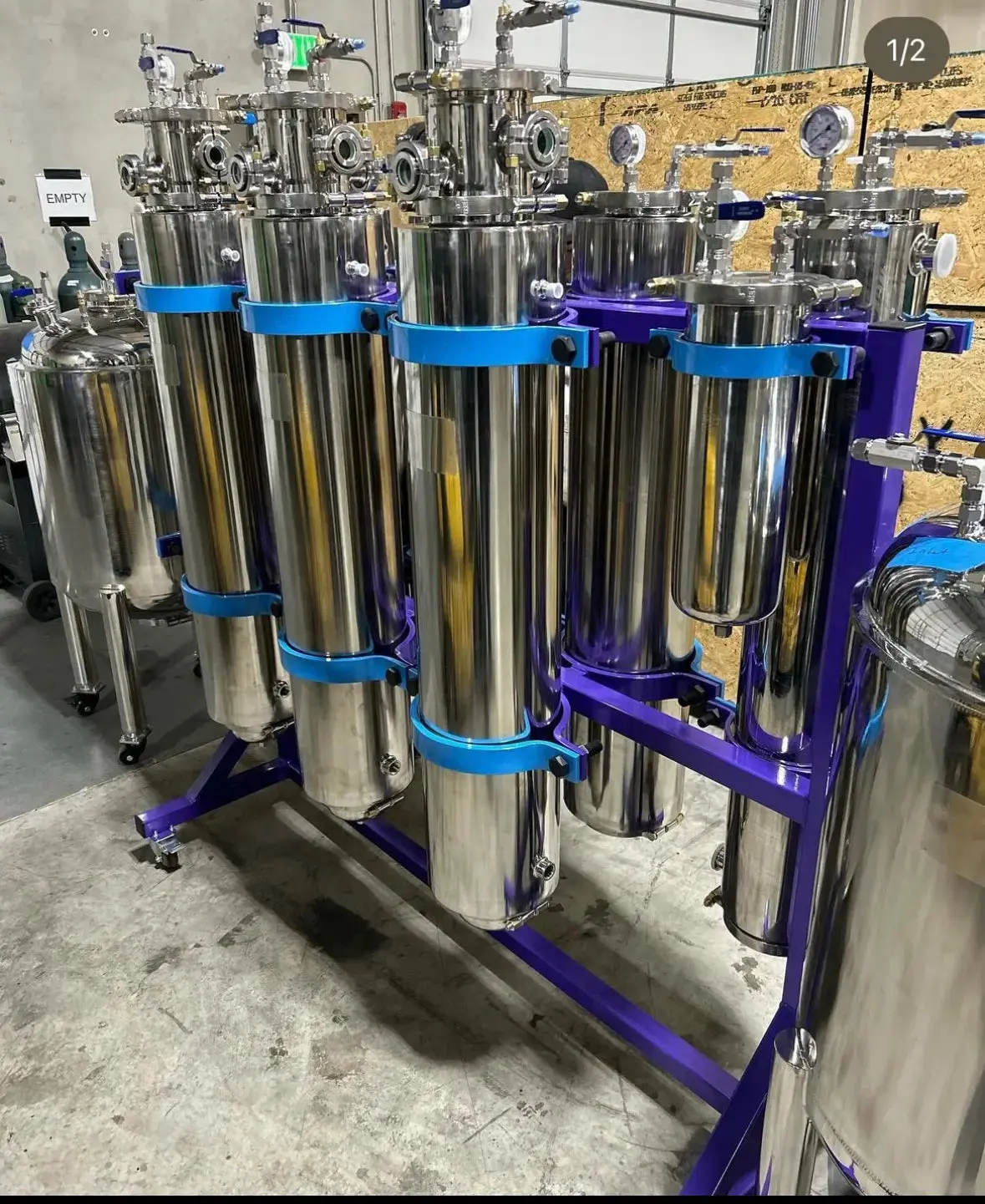

Maximize your production with chillers and heaters. This can create the pressures you need to easily move fluid, and get the quality product you are looking for. This 30lb system comes with (2) 150lb ASME tanks, and single or double jacketed 6″x48″ material columns. With the addition of jacketed tube in tube heat exchangers, this machine is ready for high volume production.
(1) 200L Single or Double Jacketed ASME Solvent Tank
(1) 200L Single Jacketed ASME Collection Tank w/ 1″ vapor port
(1) 6×48 Tube and Shell (Vacuum Jacketed) w/ 1″ vapor port
(3) 6×48 Single or Double Jacketed Material Column
(6) 6″ ASME Sight glass tri-clamp
(3) 6″ Tri-Clamp Filter Plates to hold bags
(1) High Pressure Filter Bag for Fats
(1) 4″ Molecular Sieve Column w/ 1″ vapor port
(1) 4″ Tri-clamp Filter Plate
(2) 4″ hemispherical caps
(1) Rack for columns
4″ High Pressure Tri-Clamps
6″ High Pressure Tri-Clamps
4″ Gaskets
6″ Gaskets
Pressure Relief Valves
Venturi Vacuum Unit
Compression Fittings
Explosion Proof Scale
Engineer Peer Review
