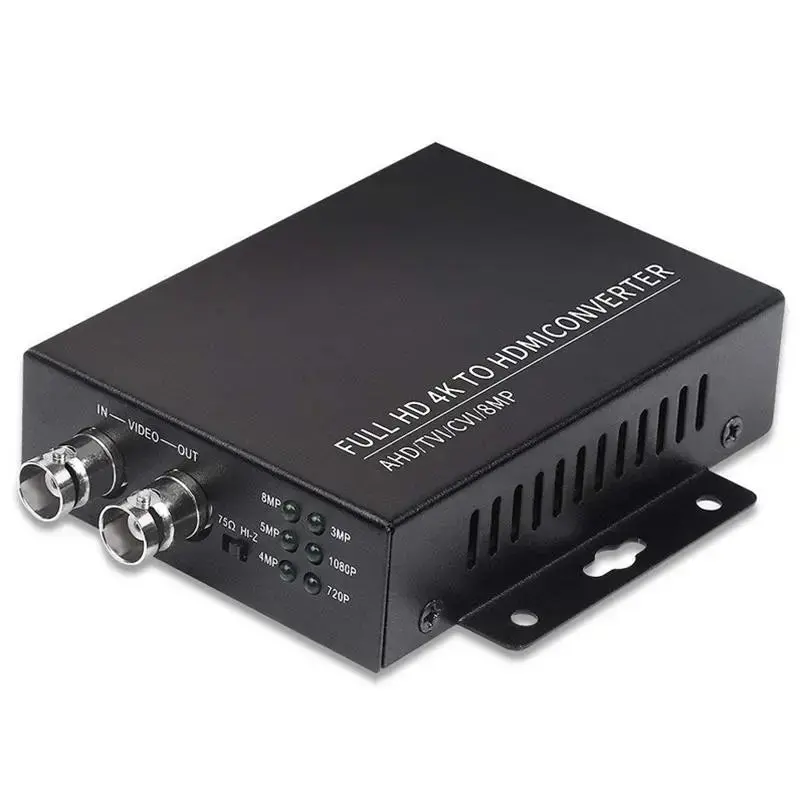

TVI to HDMI Video Converter BNC to HDMI Full HD 4K 1080p/720p/4K/8MP/5MP/4MP/3MP
MPN: TVIHDMI-4K Video Converter
Condition: New
Used to connect a TVI security camera to an HDMI monitor to display a live high definition video feed.
*Supported HD-TVI Camera Resolutions & Frame Rates:
-720p @ 25/30/50/60 FPS
-1080p @ 25/30 FPS
-3 MP (2048 x 1536) @ 18/25/30 FPS
-4 MP 2688 x 1520p @ 15 FP
-4 MP 2560 x 1440p @ 12/25/30 FPS
-5 MP 2592 x 1944p @ 12.5/20 FPS
-4K (8 MP) 3840 x 2160 @ 15 FPS
*Supported CVI 4MP, AHD 5MP Camera
*Auto recognition 720P/1080P/3MP/4MP/5MP/8MP resolution, indicator visual display
*TVI+CVBS to HDM, HDMI output
*HDMI Output Resolution: 1080p 60Hz, HD-LINK light
*Support transmission distance up to 300m over coaxial cable
*5V 1A Power Supply, power indicator light
*Operating Temperature: -10C~60C / -14F~140F
*Dimensions: 3.74(L) x 2.83 (W) x 0.94(H) inch
Note:
*There is a 75Ω/ HI-Z switch. If you are using the BNC loop output (optional), this switch should be set to HI-Z. If you are only using the HDMI output (without the BNC loop), this should be set to the 75Ω setting.
*Using the loop output is optional. Some customers only want to view their camera live on a TV and dont require recording from a DVR. In this case, installers will only use the HDMI output to connect the HD-TVI camera to a TV.
