Description

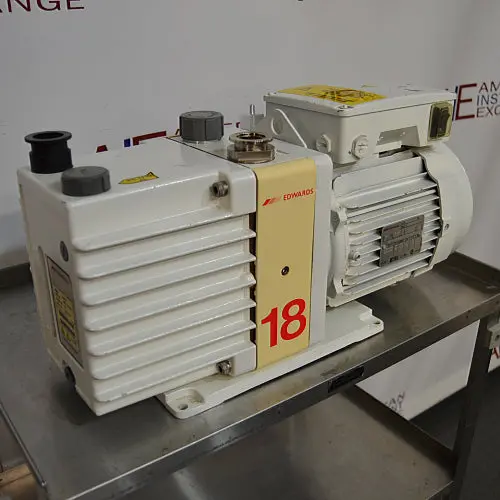

Edwards 18 Rotary Vane Vacuum Pump
The Edwards 18 Rotary Vane Vacuum Pump delivers an excellent ultimate pumping speed while maintaining quiet operation. This single-stage pump offers superior vapor handling capabilities, making it a reliable choice for various demanding applications. Designed for durability, it provides consistent performance and features compatible accessories available from Edwards, ensuring adaptability for different needs.
Specifications
- Model E1M18
- Pumping speed: 12.1 cfm
- Ultimate vacuum: 3.2×10-2 Torr
- 90-day warranty
Features
With a pumping speed displacement of 12.1 CFM at 60Hz and an ultimate pressure of 3.2 x 10⁻² Torr, the Edwards 18 E1M18 excels in efficiency. It supports applications such as refrigeration dehydration, brake line evacuation, epoxy degassing, sterilization, and mass spectrometry. Additionally, it enhances vacuum ovens, lasers, thin film coating, vacuum distillation, freeze drying, and space research, making it a versatile solution for diverse vacuum processes.
Testing
The Edwards 18 is used and reconditioned. Our technicians use essential tools like a vacuum gauge, leak detector, and proper vacuum pump oil to ensure effective testing. During the process, we inspect connections, check oil levels, monitor vacuum performance, and detect leaks to assess the pump’s condition accurately.
The listed specifications come directly from the manufacturer, but a vacuum pump’s suction naturally degrades over time. So, after receiving your order, we will test the pump and inform you of its actual vacuum pressure. We remove oil from all rotary vane vacuum pumps prior to shipping. You will need to acquire the proper oil and fill the pump upon arrival.
Edwards E1M18 – Additional Specifications
| Peak pumping speed | 12.1 CFM @ 60 Hz |
| Ultimate pressure | 3.2×10-2 Torr (4.3×10.2 mbar) |
| Oil capacity/type | Min. 1.4L / Ultragrade 19 |
| Physical data | 6.4”W x 19.7”L x 10.5”H / 83.6 lbs |
| Electrical requirements | Call to verify |
Pictures
The photos above represent our equipment, which is currently stored in our warehouse. Since we often stock multiple units of each model, we may not feature photos of every unit. However, if you request, we will provide photos of your specific equipment after we test and clean it.
For inquiries about the Edwards 18 Rotary Vane Vacuum Pump, call us at 978-521-2221 or fill out the form on this page.
