Description

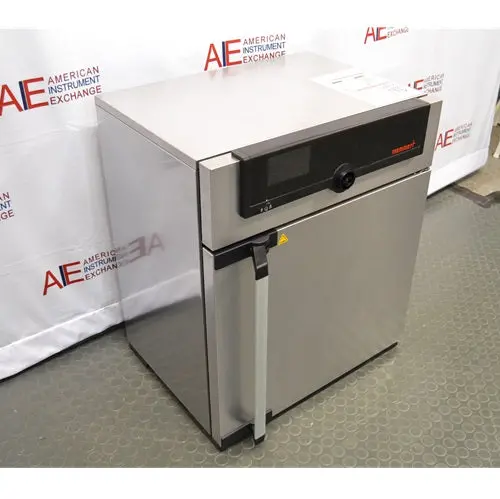

Memmert Universal Oven UN30
The Memmert Universal Oven UN30 is a universally applicable lab oven and is Memmert’s classic appliance for temperature control in science, research and material tests in the industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.
Memmert Universal Oven UN30 features
- Temp range: min. 5°C above ambient up to +300°C
- 1.1 cubic foot chamber
- Gravity convection
- Stainless steel construction
- 90-day warranty
ControlCOCKPIT: adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-color display. Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days. Adjustable Parameters: temperature (Celsius or Fahrenheit), air flap position, program time, time zones, daylight savings time. Function SetpointWAIT: the process time does not start until the set temperature is reached. Language Setting: German, English, Spanish, and French. Calibration: three freely selectable temperature values.
Memmert Universal Oven UN30 specifications
| Volume approx. | 1.1 Cu Ft (32 L) |
|---|---|
| Temperature range | +5°C above ambient temperature to +300°C |
| Setting temperature range | +20° to +300°C |
| Setting accuracy °C | up to 99.9: 0.1 / from 100: 0.5 |
| Contoller | SingleDISPLAY: TFT color touchscreen, manage data, save log files, monitor up to 32 devices online, automatic alarms emailed |
| Interfaces | Ethernet |
| Housing | Textured stainless steel, rear zinc-plated steel, TFT color display with touchscreen, fully insulated stainless steel door |
| Interior | Stainless steel (ASTM 304) with all-round deep-drawn ribs to integrate the large-area heating with ceramic-metal sheath |
| Fresh air | Admixture of pre-heated fresh air by electronically adjustable air flap |
| Chamber Dimensions (W x H x D) | 15.7 x 12.6 x 9.8 inches (400 x 320 x 250 mm) |
| Maximum number of grids/shelves | 3 (1 included) |
| Maximum loading per grid/shelf | 44 lbs (20 kg) |
| Maximum loading of chamber | 132 lbs (60 kg) |
| Maximum loading per slide-in drip tray | 3.3 lbs (1.5 kg) |
| Maximum loading per bottom drip tray | 3.3 lbs (1.5 kg) |
| Exterior Dimensions (W x H x D) | 23 x 27.7 x 17.1 inches (585 x 704 x 434 mm) |
| Standard works calibration certificate (measuring point chamber center) |
°C +160 |
| Electrical | 115 V, 50/60 Hz, 1600 Watts |
