Description
The Triplett SLM400-KIT Sound Level Meter with Calibrator Kit can be used to test and verify sound levels for worker safety (OSHA), community noise ordinances, night clubs/concerts, airports, mines, athletic events, construction sites, vehicle testing, wind farms, new product noise reduction, and other applications. Read More >
DESCRIPTION

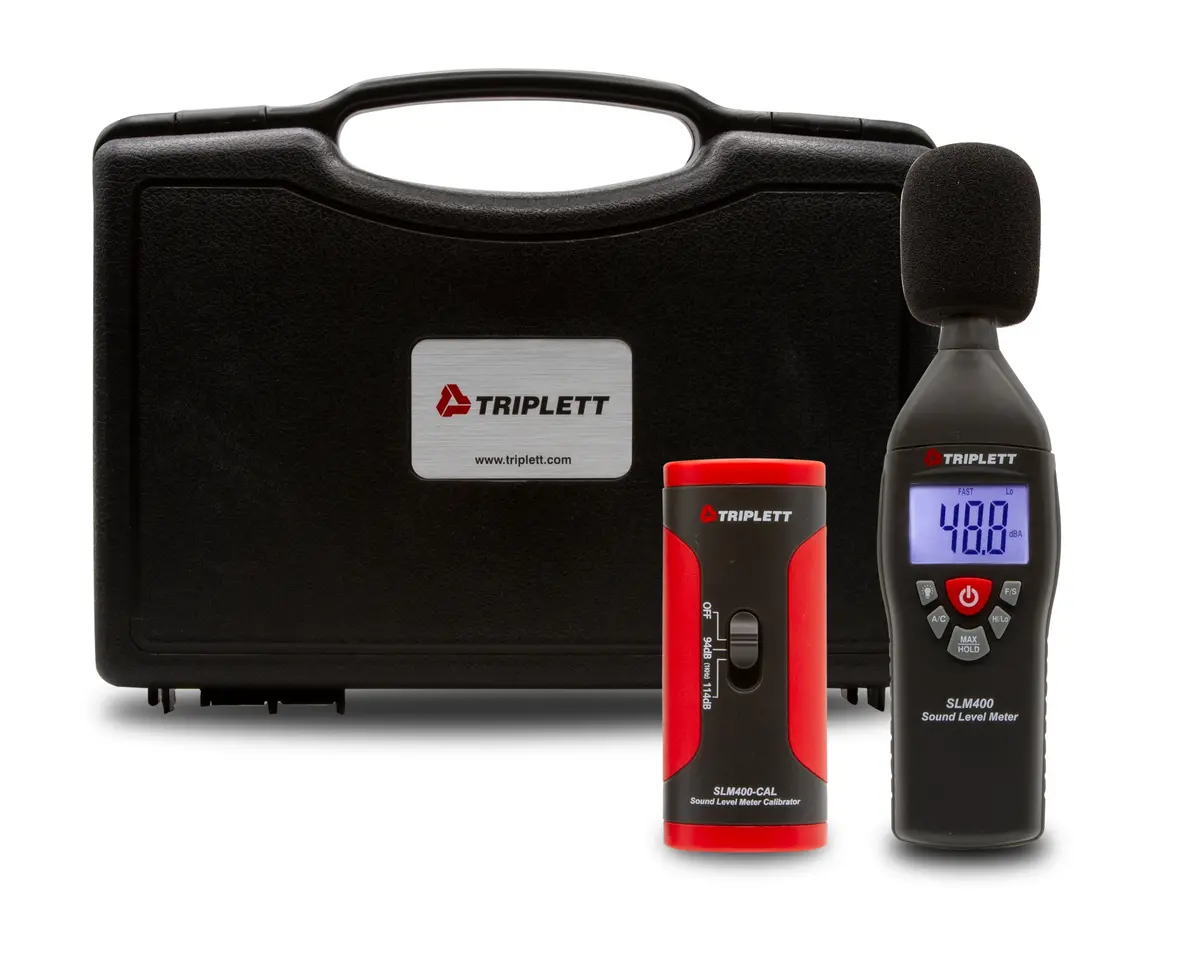

The Triplett SLM400-KIT Sound Level Meter with Calibrator Kit can be used to test and verify sound levels for worker safety (OSHA), community noise ordinances, night clubs/concerts, airports, mines, athletic events, construction sites, vehicle testing, wind farms, new product noise reduction, and other applications. The Sound Level Meter meets IEC 61672-1 type 2, ANSI S1.4 Type 2 with ±1.5dB accuracy. It features a 35 to 130dB range plus A and C weighting with selectable fast/slow response time. The calibrator fits 1/2″ diameter microphones and has selectable 94dB and 114dB output with ±0.5dB accuracy. Calibrator output frequency is ±4%@1kHz. The SLM400-KIT-NIST kit includes Certificate of Traceability to N.I.S.T, Type2 Sound Level Meter with 9V battery and windscreen plus Sound Level Calibrator with 9V battery, and hard carrying case.

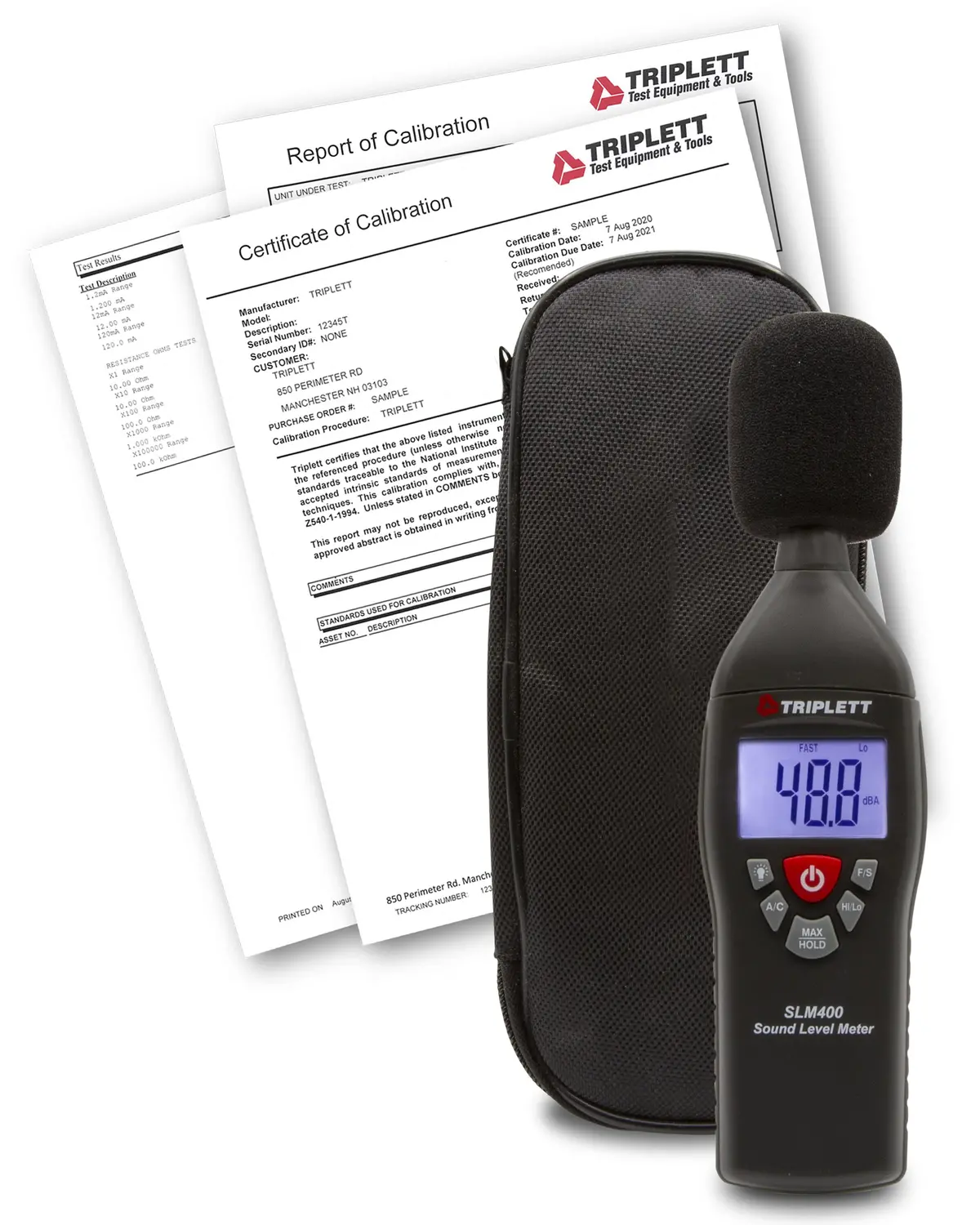

SLM400-KIT-NIST Comes with Certificate of traceability to NIST Standards
Please add 11 business days lead-time for the NIST calibration process
CATEGORY: SOUND LEVEL METER
Features
- Meets IEC 61672-1 type 2, ANSI S1.4 Type 2
- 35 to 130dB over 2 ranges
- A and C weighting with selectable fast/slow response time
- Fast (125ms)/Slow (1s) response time
- Fits ½” diameter microphones
- Output Frequency ±4%@1kHz with ±0.5dB accuracy
Specifications
| SLM400 / SLM400-KIT | |
| Measurement Ranges | Low: 35 to 100dB; High: 65 to 130dB |
| Bandwidth | 31.5 to 8kHz |
| Resolution | 0.1dB |
| Accuracy | ±1.5dB |
| Standards | Meets IEC 61672-1 type 2, ANSI S1.4 Type 2 |
| Frequency Weighting | A and C (selectable) |
| Response Time | Fast: 125ms / Slow: 1s |
| Power | 9V Battery |
| Includes Calibrator | No / Yes |
| Dimensions (Meter) | ;ki9.5.2.7 x 1.9 x 1″ (240 x 68 x 25mm) |
| Weight98 | 6.75oz (210g) |
Downloads
User Manual
Datasheet
MORE INFO
I think we can all agree that the loss of one of our most important senses – “hearing”, is something we all want to prevent for as long as we can! A sound level meter is a device used to measure the intensity of sound waves. Being aware of the intensity of sound exposures helps you determine what precautions should to be taken to protect human ears from any noise that rises above the “safe” threshold.

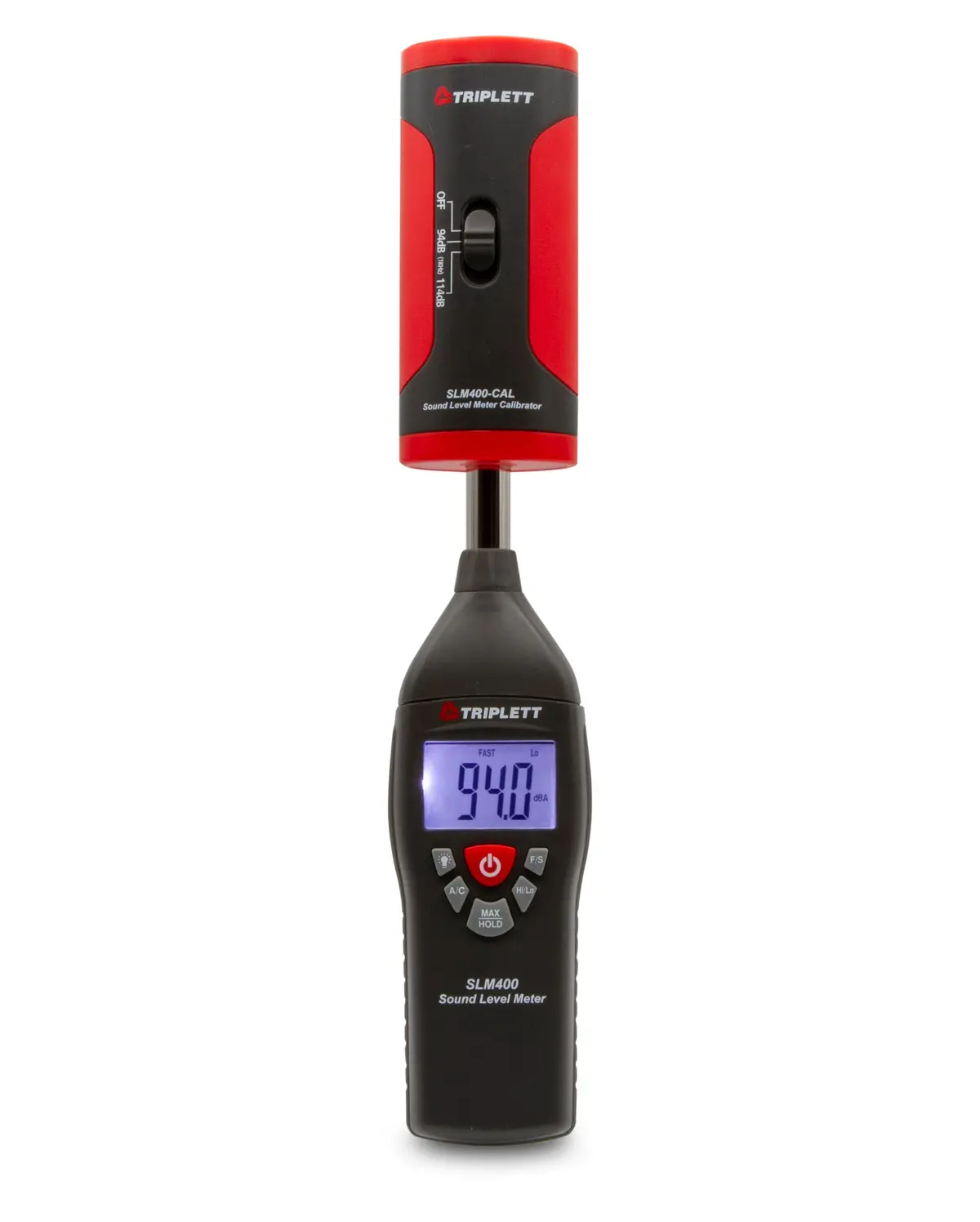

A sound level calibrator is a tool that outputs “known” reference dB levels – typically (2) levels of 94 and 114dB @ a 1 kHz frequency. This allows for simple end user calibration of a sound level to ensure it’s at its best accuracy before each use.
With the SLM400-KIT you get both of these pieces together in a kit to monitor sound levels and ensure they are safe! These are widely used to test and verify sound levels for worker safety (OSHA), community noise ordinances, night clubs/concerts, airports, mines, athletic events, construction sites, vehicle testing, wind farms, new product noise reduction, and other applications.
The sound level meter meets IEC 61672-1 type 2, ANSI S1.4 Type 2 with ±1.5dB accuracy. It features a 35 to 130dB range plus A and C weighting with selectable fast/ slow response time. Includes 9V battery and windscreen, and hard carrying case. The kit is also available with a NIST Traceable Certificate option when ordering.
