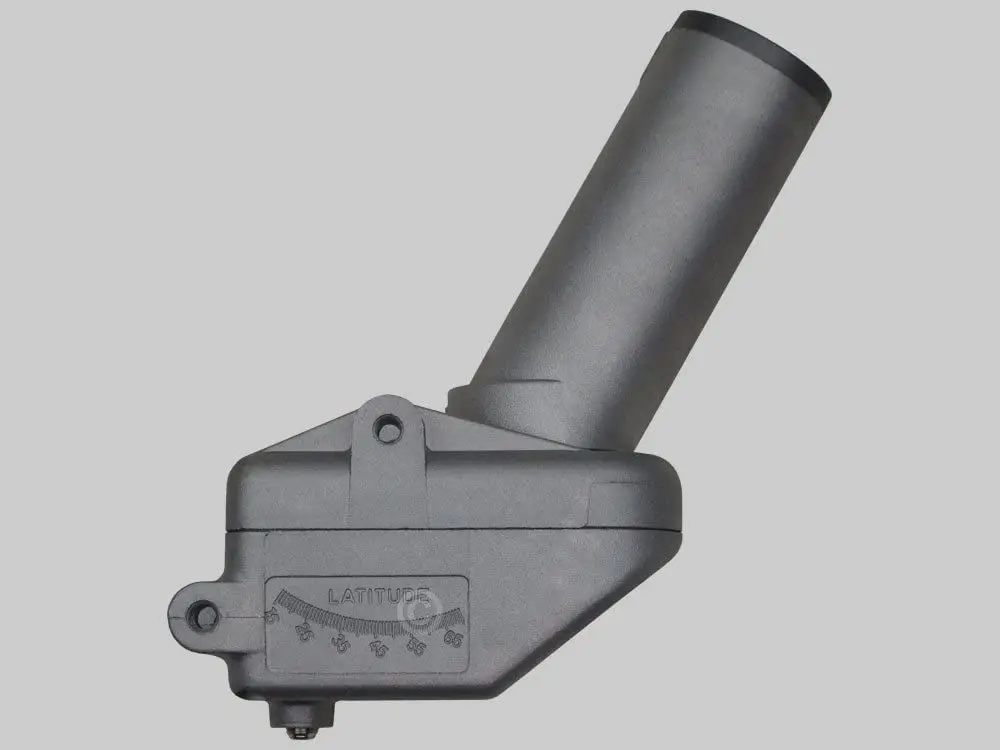

Stab HH100 Motorized Satellite Dish Rotor — DiSEqC-Compatible for FTA Systems

Description

The motor uses DiSEqC 1.2 communication protocol, and is compatible with all receivers that use the standard DiSEqC 1.2 or USALS (Universal Satellite Automatic Location System) to control the movement of the dish.
Satellite antenna rotor – USALS
Communication ProtocolDiSEqC1.2
Antenna Maximum Diameter100 cm
Maximum Antenna Weight12 kg
Support Pole Diameter50 ÷ 83 mm
Lunghezza Perno Mobile125 mm
Diametro Perno Mobile54 mm
Rotation Angle± 62°
Rotation Speed1.8°/s (18 V); 1.2°/s (13 V)
Work Voltage13 / 18 Vdc
Stand-by Consumption30 mA
Work Absorption190 mA
Max Consumption350 mA
Operating Temperature-40°C ÷ +80°C
Max Relative Humidity100%
Settable Positions (DiSEqC1.2)49 satellites
Preset Positions (DiSEqC1.2)28 satellites
Settable Positions (USALS)without limits
ConnectorsF-type
Linkcoaxial cable
Mechanical Limits± 70°
Settable Electronic Limits5° ÷ 65°
Fine Rotation0.1° impulses
Inclinazione Del Rotore Sul Palo15° ÷ 70°
Weight3000 g
