Gilson 8-Inch Mechanical Sieve Shaker for Particle Size Analysis

Description

Gilson SS-15D 8” Digital Sieve Shaker

• Holds 6 full-height or 13 half-height sieves plus pan
• Lateral/up and down tilting action assures thorough separations
• 15-minute electric timer
• Sieves may be available
• 90-day warranty

The Gilson SS-15D Sieve Shaker is a portable 8in (203mm) digital sieve shaker designed to outperform comparably priced equipment. The 1/4hp unit is widely accepted by state transportation departments for highway materials testing. Back and forth lateral motion is combined with up and down and tilting motions causing test material to travel in an orbit on the sieve surfaces. This assures full use of sieve mesh area without precise leveling of the shaker.

CLICK HERE to see the Gilson SS15D 8″ digital sieve shaker on our YouTube channel

The Gilson SS-15D is recommended primarily for No.4 to No.200 size range, but may be used with larger material sizes when specifications for sieve loading and sample quantities permit. The Shaker holds six full-height sieves and pan or thirteen half-height sieves and pan. Clamp bar with attached cover secures sieves. The 15-minute timer has an adjustable knob-stop for improved repeatability, and a “hold” feature for continuous running. Motor and all mechanical parts are enclosed in a sturdy metal case.

This sieve shaker is used and reconditioned. Our technicians test all equipment to confirm that it operates properly and to the manufacturer’s specifications. While we can’t test for a specific analytical application, we will do our best to simulate the conditions under which the equipment will be run. If you have particular testing requirements or requests please let us know and we’ll work with you to make sure these requirements are addressed during testing.

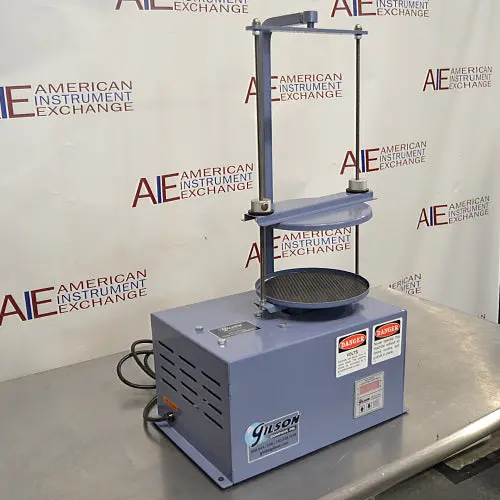

The photos above are representative. Please bear in mind that the equipment shown is currently in storage in our warehouse and that in addition to testing each machine we will clean all the equipment thoroughly prior to shipment. We often have multiple units of each model in stock and sometimes we’re unable to feature photos of every single unit. At your request, we can provide photos of the equipment in your order after it has been tested and cleaned.

Gilson SS-15D 8” Digital Sieve Shaker– Specifications

For inquiries about the Gilson SS-15D 8” Digital Sieve Shaker, please give us a call at 978-521-2221, or fill out the form on this page.
