OHAUS SHEx1619DG Heavy-Duty Environmental Orbital Shaker

Description

Ohaus SHEX1619DG Extreme Environmental Shaker

Ohaus SHEX1619DG Extreme Environmental Shaker are designed for use in applications that require CO2 and humidity for optimal cell growth.

SHEX1619DG – Spcifications

• 11” x 13” built-in tray
• Speed Range: 15 to 500 RPM
• Circular Orbit: 19 mm
• 90-day warranty

Ohaus SHEX1619DG – Features

Ohaus SHEX1619DG Extreme Environmental Shaker are designed for use in applications that require CO2 and humidity for optimal cell growth. The remote controller magnetically attaches to the outside of most incubators or easily sits on the lab bench.

The shaker base is placed inside the incubator and connected to the touchpad controller with a 170 cm cable allowing for simple external control of speed & time settings. This shaker features an IP65-rated motor.

Independent LED displays for speed/time allow the operator to view both settings simultaneously.

Cold rolled steel (CRS) and stainless steel, external control module, thin ribbon cable (5.5 feet or 1.7 m) easily passes underneath an incubator door or via incubator’s utility port.

Testing

The Ohaus SHEX1619DG is used and reconditioned. We test the shaking mechanism for extended periods of time to make sure all set points operate on continuous setting. If the shaker is incubated, we use an external digital probe to verify the temperature displayed is accurate.



While we can’t test for a specific analytical application, we will do our best to simulate the typical operating conditions. If you have specific testing requirements or requests, please inform us. We will gladly work with you to ensure these requirements are addressed during testing.

Ohaus SHEX1619DG – Additional Specifications

Dimensions	13.9”W x 17.3”D x 5.8”H
Speed range	15 – 500 rpm
Speed accuracy	±1 rpm, above 100 rpm ±1% of set speed
Orbital stroke	19 mm
Working Environment	-10°C to +60°C, 100%RH

Pictures

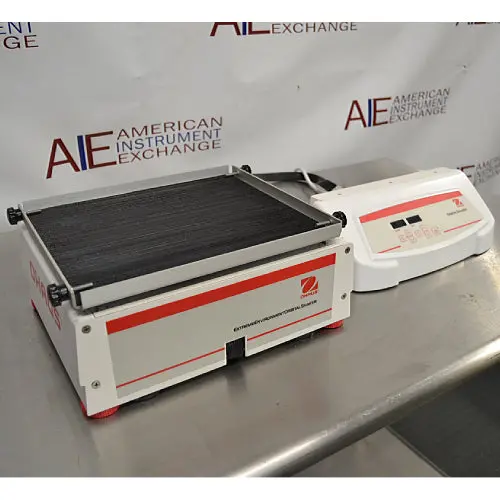

The photos above represent our equipment, which is currently stored in our warehouse. Since we often stock multiple units of each model, we may not feature photos of every unit. However, if you request, we will provide photos of your specific equipment after we test and clean it.

For inquiries about Ohaus SHEX1619DG Extreme Environment Shaker, call us at 978-521-2221 or fill out the form on this page.
